trikNetwork::Connection Class Reference

Abstract class that serves one client of TrikServer. More...

#include <connection.h>

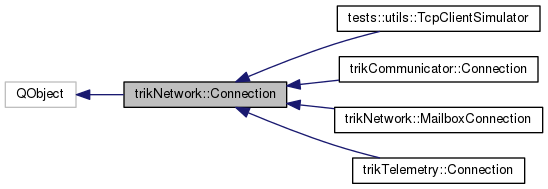

Inheritance diagram for trikNetwork::Connection:

Collaboration diagram for trikNetwork::Connection:

Signals
void	disconnected (trikNetwork::Connection *self)
	Emitted after connection becomes closed. More...
void	connected (trikNetwork::Connection *self)
	Emitted after connection is established. More...

Public Member Functions
	Connection (Protocol connectionProtocol, Heartbeat useHeartbeat)
	Constructor. More...
bool	isConnected () const
	Returns true if socket is opened or false otherwise. More...
bool	isValid () const
	Checks if socket is valid or not Attention!!! Hot fix for NTI contest. More...
QHostAddress	peerAddress () const
	Returns peer address of a connection, if it is open, or empty QHostAddress if connection is not established yet. More...
int	peerPort () const
	Returns peer port of a connection, if it is open, or -1 if connection is not established yet. More...
Q_INVOKABLE void	init (qintptr socketDescriptor)
	Creates socket and initializes incoming connection, shall be called when Connection is already in its own thread. More...
Q_INVOKABLE void	send (const QByteArray &data)
	Sends given byte array to peer. More...

Protected Member Functions
void	init (const QHostAddress &ip, int port)
	Creates socket and initializes outgoing connection, shall be called when Connection is already in its own thread. More...

Detailed Description

Abstract class that serves one client of TrikServer.

Meant to work in separate thread. Creates its own socket and handles all incoming messages.

Constructor & Destructor Documentation

Connection::Connection ( Protocol  connectionProtocol, Heartbeat  useHeartbeat  )

explicit

Constructor.

Parameters

connectionProtocol	- protocol used by this connection.
useHeartbeat	- use or don't use heartbeat protocol option.

Member Function Documentation

void trikNetwork::Connection::connected ( trikNetwork::Connection *  self )

signal

Emitted after connection is established.

void trikNetwork::Connection::disconnected ( trikNetwork::Connection *  self )

signal

Emitted after connection becomes closed.

void Connection::init

(

qintptr

socketDescriptor

)

Creates socket and initializes incoming connection, shall be called when Connection is already in its own thread.

Parameters

socketDescriptor

- native socket descriptor.

void Connection::init ( const QHostAddress &  ip, int  port  )

protected

Creates socket and initializes outgoing connection, shall be called when Connection is already in its own thread.

Parameters

ip	- target ip address.
port	- target port.

bool Connection::isConnected

(

)

const

Returns true if socket is opened or false otherwise.

bool Connection::isValid

(

)

const

Checks if socket is valid or not Attention!!! Hot fix for NTI contest.

There are a lot of incorrect interaction between threads, this dirty fix checks that current connection exists. For example, sometimes thread and connection are added/deleted to mConnections in TrikServer, but actually they are not added/deleted.

QHostAddress Connection::peerAddress

(

)

const

Returns peer address of a connection, if it is open, or empty QHostAddress if connection is not established yet.

int Connection::peerPort

(

)

const

Returns peer port of a connection, if it is open, or -1 if connection is not established yet.

void Connection::send

(

const QByteArray &

data

)

Sends given byte array to peer.

Reset keepalive timer to avoid spamming with keepalive packets.

---

The documentation for this class was generated from the following files:

• trikNetwork/include/trikNetwork/connection.h
• trikNetwork/src/connection.cpp
